3 Bit Fuzz

3 Bit Fuzz

Untamed sonic mayhem

Regular price £150.00
Regular price Sale price £150.00
Sale Sold out
Shipping calculated at checkout.

3 Bit Fuzz is an experimental, multi-band bitcrusher. It's our attempt to do something a little bit different, and take some risk and try making an actually original pedal.

The signal chain splits into three paths, with each path having pre-distortion low- and high pass filters, a bitcrusher, and post-distortion filters. The pedal has 8 different modes, which tweak the cutoff frequencies for the pre- and post distortion filters, offering a wide variety of sounds. The signal chain is then finished off with a few tone-shaping controls - a treble-rolloff tone control, a mid-scoop filter, and a feature we call "Curves", which introduces an output EQ curve to the sound, which makes the pedal suitable for running either in front of an amp or directly into a power amplifier.

View full details

Daedalus Effects Series

Daedalus is a line of digital effects pedals, with the unique feature of being able to swap out the faceplates on the pedals, to re-program the device to any other effect in the series. It also features full MIDI control, Expression pedal control and it can be powered via USB (or a standard 9V DC adapter)

Features

  • 24 bit audio codec
  • Supports instrument or line-level inputs
  • MIDI 3.5mm TRS (Type-A) input
  • Expression pedal / external footswitch input
  • MIDI over USB

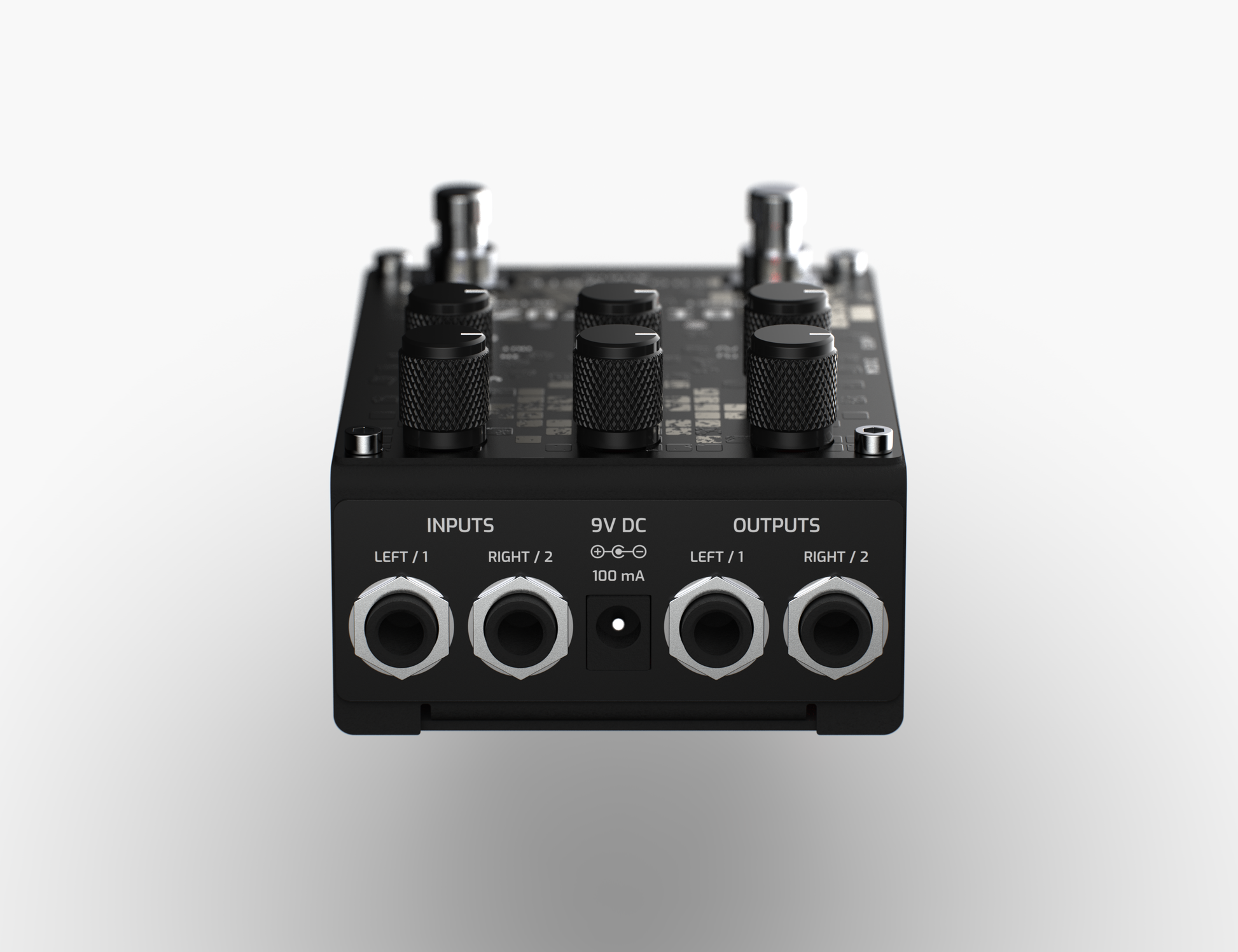

  • 9V DC or USB powered
  • Dual, soft-touch footswitches
  • 1.5mm thick, powder-coated steel enclosure for an extremely rugged build
  • Reversable faceplate with two different designs on each pedal
  • Ability to completely reprogram the pedal to a different effect from the Daedalus line-up
  • All effect firmware is available for free

Firmware Downloads

Go to the Firmware Page

Get More Faceplates

Product Details - 3 Bit Fuzz

User Manual

Download User Manual

Controls
